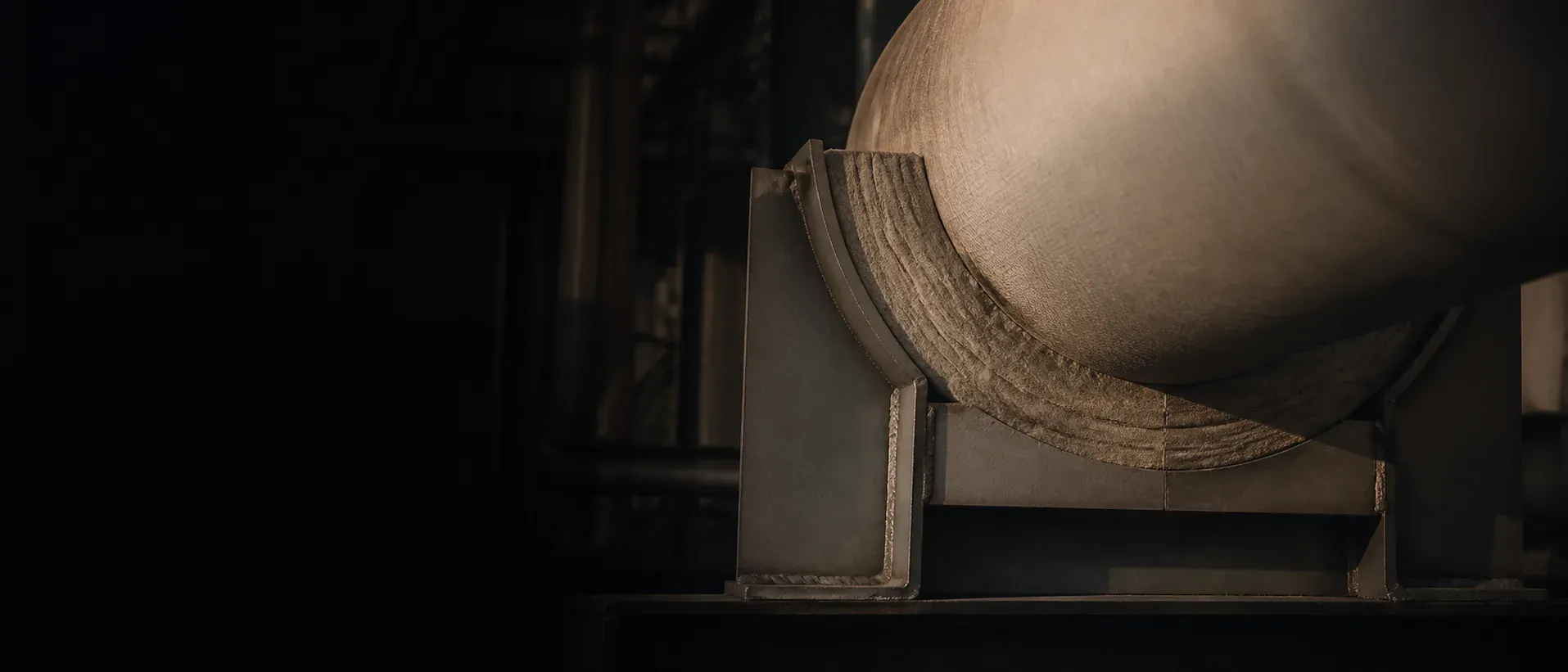

PE-sealed insulated pipe supports installed in an industrial piping system
Products / Pipe support systems

PE-sealed insulated pipe supports

Supports that carry load without carrying heat. Pre-insulated cradles for cryogenic, high-temperature, and cyclic service, in resting, guided, anchored, and hanging arrangements.

Specification

Cold, hot, and dual-temperature service.

Exploded insulated pipe support showing the pipe, insulation inserts, split clamp, and saddle.
Conceptual assembly study
Thermal movement

How far will the run move between anchors?

Axial movement is the run length times the coefficient of thermal expansion times the temperature change.

Arrangements
Resting · Guided · Anchored · Hanging
Construction
Carbon steel, galvanized or painted
Deliverable
PE-sealed drawings and calculations
Codes
ASME B31.1 · B31.3 · MSS SP-58

An engineer reviews every request. No configurator, no automatic pricing.
