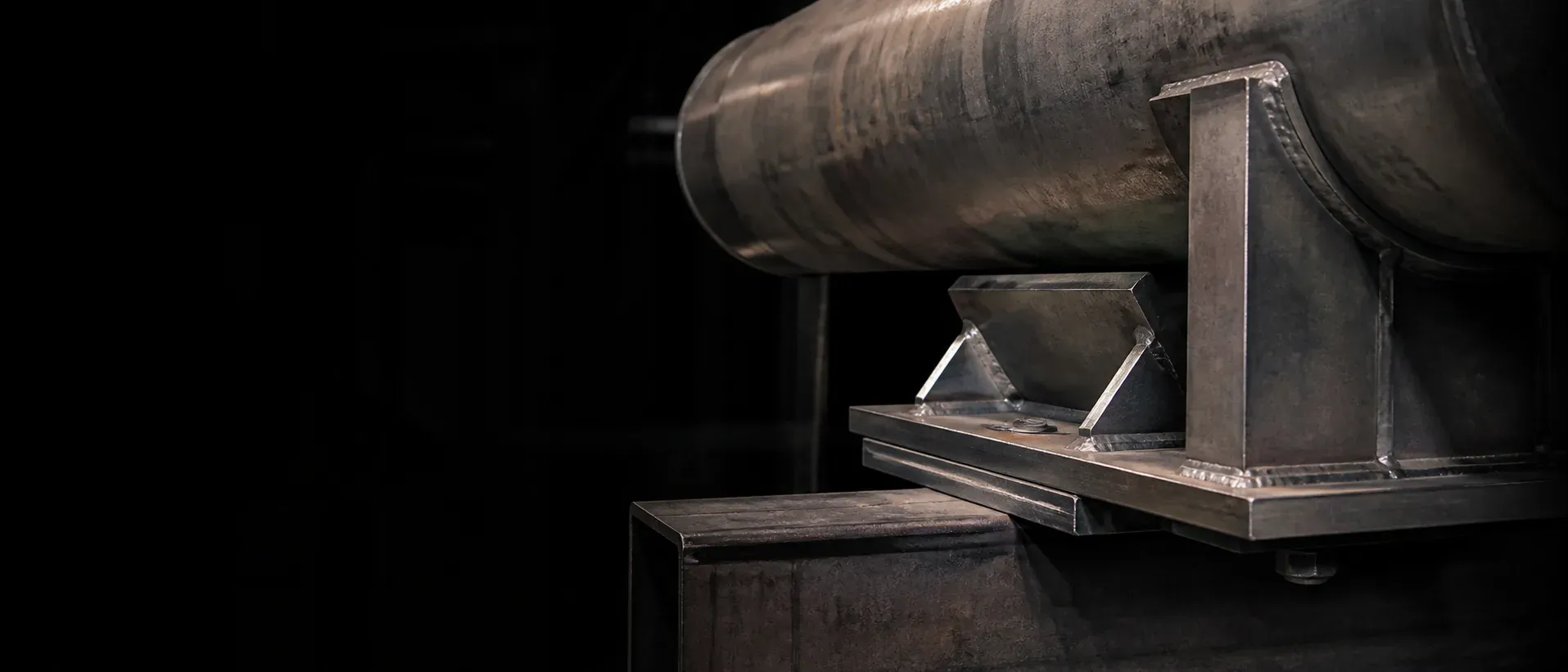

Welded supports that carry the pipe into structural steel, engineered and sealed as one assembly. Resting, sliding, guided, line stop, and anchored arrangements, with the load path resolved and detailed for fabrication.
Specification
Bare-pipe support in every arrangement.
Friction load
How much lateral load goes into the supporting steel?
Friction load is the vertical load times the coefficient of friction at the sliding surface.
Arrangements
Resting / sliding · Guided · Line stop · Anchor
Slide plates
Available where low friction is required
Construction
Carbon steel, stainless, or alloy to specification
Deliverable
PE-sealed drawings and calculations
Codes
ASME B31.1 · B31.3 · MSS SP-58 · MSS SP-69
An engineer reviews every request. No configurator, no automatic pricing.
